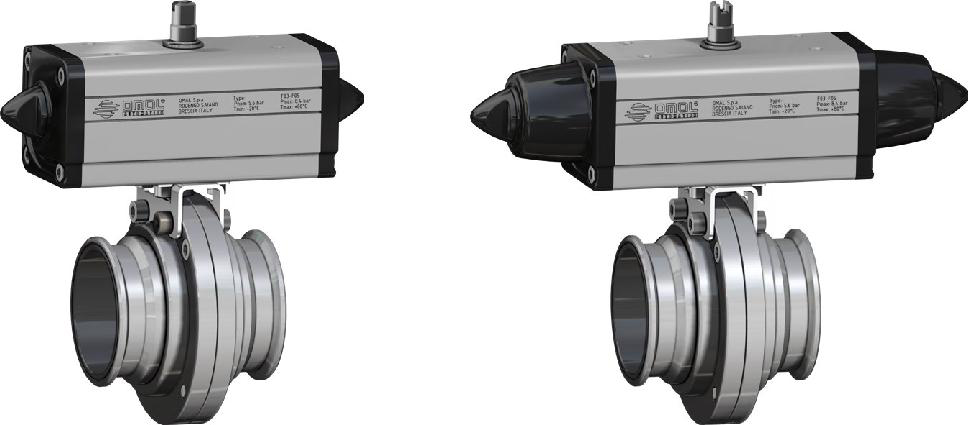

CON ATTUATORE PNEUMATICO DOPPIO EFFETTO

WITH DOUBLE ACTING PNEUMATIC ACTUATOR

CLAMP SIZE

ARTICOLO CLAMP

ATTUATORE

KIT montaggio

L [mm]

H [mm]

Kg

[inch]

ITEM CODE CLAMP

ACTUATOR

Mounting KIT

1"

DG494H006

DAN0015411S

KCF042253

159,0

120,2

1,6

1" 1/2

DG494H008

DAN0015411S

KCF042253

159,0

127,2

2,2

2"

DG494H009

DAN0030411S

KCF042253

174,2

140,2

2,9

2" 1/2

DG494H010

DAN0045412S

KCF042254

188,5

155,5

3,4

3"

DG494H011

DAN0060412S

KCF052255

198,0

168,4

4,3

4"

DG494H012

DAN0106411S

KCF072257

237,0

193,3

6,5

CON ATTUATORE PNEUMATICO SEMPLICE EFFETTO

WITH SPRING RETURN PNEUMATIC ACTUATOR

CLAMP SIZE

ARTICOLO CLAMP

ATTUATORE

KIT montaggio

L [mm]

H [mm]

Kg

[inch]

ITEM CODE CLAMP

ACTUATOR

Mounting KIT

1"

SG494H006

SRN0015401S

KCF042253

233,2

127,2

2,2

1" 1/2

SG494H008

SRN0015401S

KCF042253

233,2

134,2

2,5

2"

SG494H009

SRN0030402S

KCF052255

258,8

151,4

3,8

2" 1/2

SG494H010

SRN0053401S

KCF075308

304,2

174,3

5,3

3"

SG494H011

SRN0060401S

KCF075752

338,5

185,0

9,3

4"

SG494H012

SRN0090401S

KCF105307

393,7

227,5

11,9

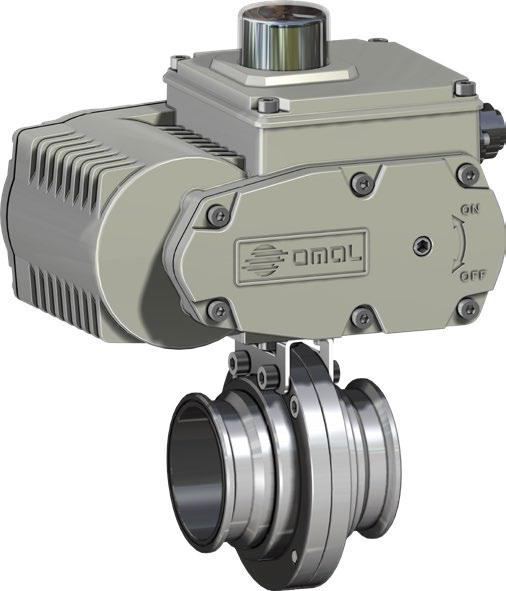

CON ATTUATORE ELETTRICO ON-OFF

WITH ON-OFF ELECTRIC ACTUATOR

CLAMP SIZE

ARTICOLO CLAMP

ATTUATORE

KIT montaggio

L [mm]

H [mm]

Kg

[inch]

ITEM CODE CLAMP

ACTUATOR

Mounting KIT

1"

C494A5E06

EA0035A5C000

KCF052255

250,0

185,0

4,4

1" 1/2

C494A5E08

EA0035A5C000

KCF052255

250,0

192,0

5,0

2"

C494A5E09

EA0035A5C000

KCF052255

250,0

198,0

5,5

2" 1/2

C494A5G10

EA0070A5C000

KCF052255

250,0

208,0

5,8

3"

C494A5G11

EA0070A5C000

KCF053106

250,0

215,0

8,2

4"

C494A5I12

EA0130A5C000

KCF072257

280,0

247,6

11,5
