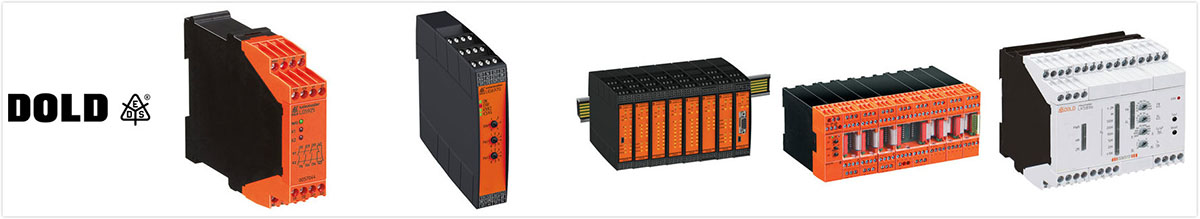

CANopen bus modules |
| Function | Number of
inputs/
outputs | Output:
Transistor / relay | Thermal current lth [A] | Housing Style:
Width [mm] | Type |
|---|
|
|
|
|
|
|
|---|
| Input module, digital | 8I |
|
| Distribution board: 70 | IP 5502 |
| Output module, digital | 8A | R | 2 | Distribution board: 70 | IP 5503 |
| Input module, analog | 2I |
|
| Distribution board: 35 | IL 5508 |
| I/O module, digital | 4I, 4O | R | 2 | Distribution board: 52,5 | IN 5509 |
I/O module, analog/digital
configurable for field mounting | 4I, 4O | T | 1 | for field mounting | DX 5509 |
| Power supply unit |
|
| *0.35 | Switch cabinet: 45 | BH 5594 |
| Power supply unit |
|
| *0.35; 0.6 | Distribution board: 70; 105 | IP 5592, IR 5592 |
| Switched power supply |
|
|
| Switch cabinet: 22,5 | BG 5595 |
| Switched power supply |
|
|
| Switch cabinet: 35 | RL 5596 |
| CANopen PLC | 4I, 4O | T | 1 | for field mounting | DX 5504 |
| CANopen PLC | 2I, 2O | R | 2 | Distribution board: 35; 52.5 | IL 5504, IN 5504 |
